For the first time Mouldflo offers Mouldmakers a unique way to configurate the cooling circuit with full benchmark.

Mouldmakers must often supply new moulds to the customer complete with a report of operating parameters which should include data relating to the cooling circuit the mould. Now mouldmakers can easily connect the Mouldflo Test-rig to  the benchmarking process.

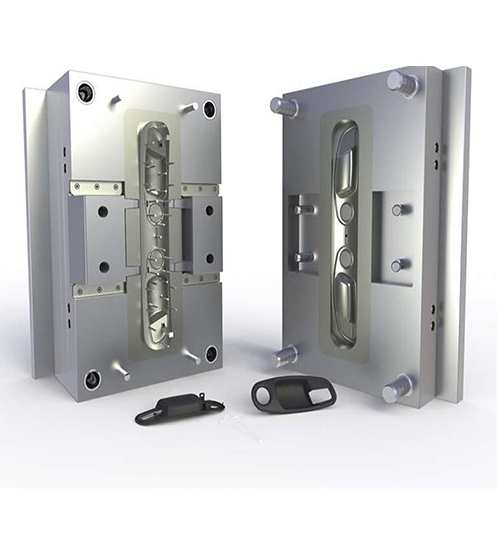

Mould must be maintained regularly to remove scale and rust and to ensure maximum productivity.

Mould cooling circuits are exposed to scale build up,  which will reduce the flow capacity dramatically, causing mouding problems due to increasing temperatures.

Eventually the cooling channels will block and stop the production.

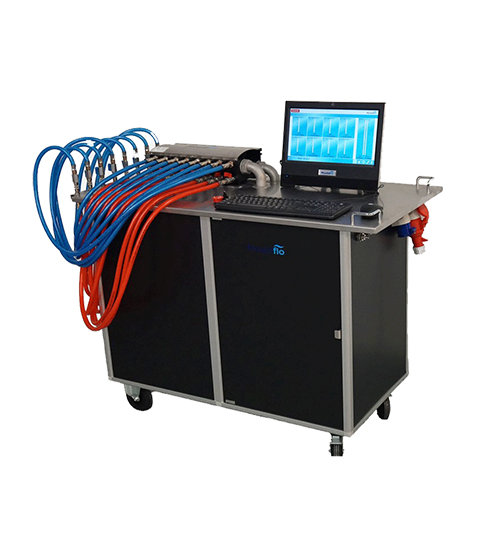

With the Mouldflo Test-rig, the cooling channels can be analysed and tested.

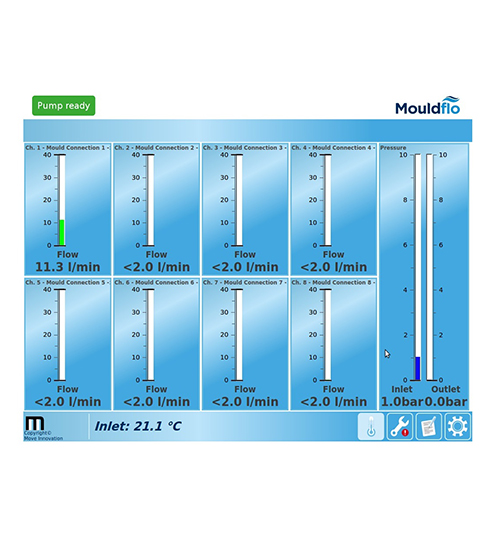

The flow and pressure can be controlled exactly to simulate the production setup. all details displayed on the screen:

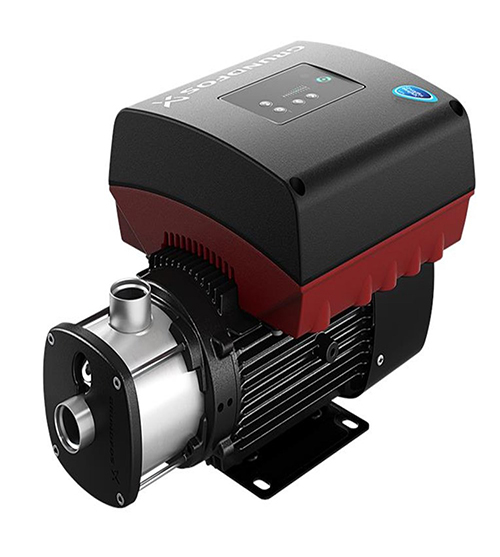

The Test-rig is equipped with a high tech pump, which allows you to control flow volume and pump pressure. Everything is controlled from the touch control.​
The integrated water tank will provide water for flow and pressure tests.

After testing and validating the mould, a convenient feature allows you to air purge the water out of all channels, simply by pushing the “empty system” function.

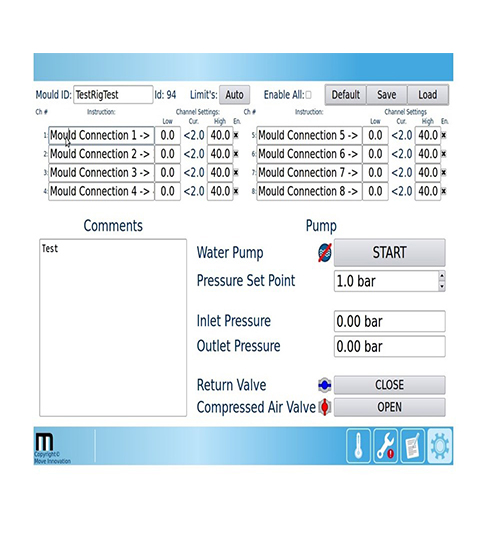

The software is designed to give a simple and quick overview. The software allows you monitor all parameters and settings. All reports can be saved or printed as documentation.
​
Following data can be recorded:

• Flow volume/capacity
• Pressure loss through the Mould
• Pressure Leak Test

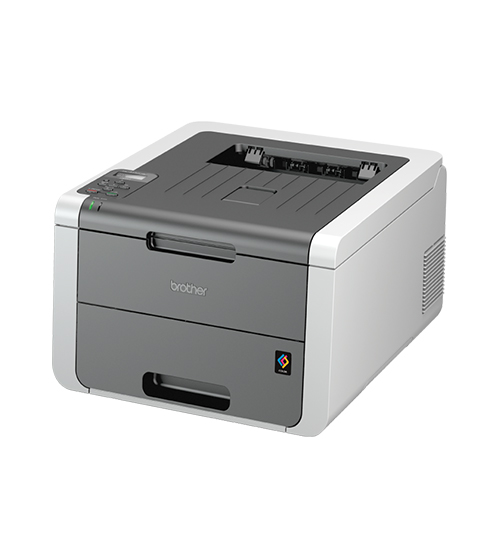

We can now offer a new version of the software for our Test-rig which offers a printer function.
This means that you can print test reports from the system, which enables you to document the veracity of the mould directly from the user screen.

Besides the printer, this option also includes a wireless router, which could facilitate remote support in the future.
