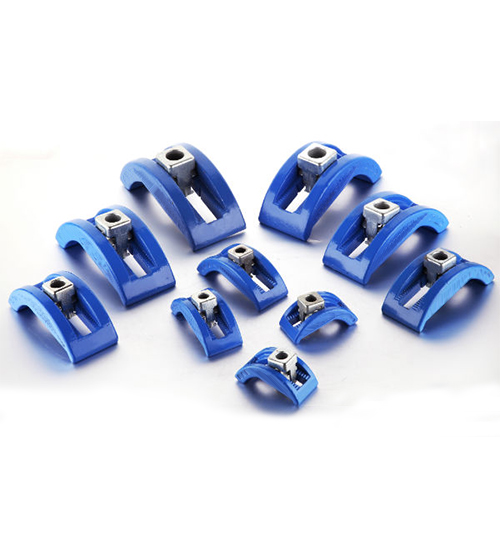

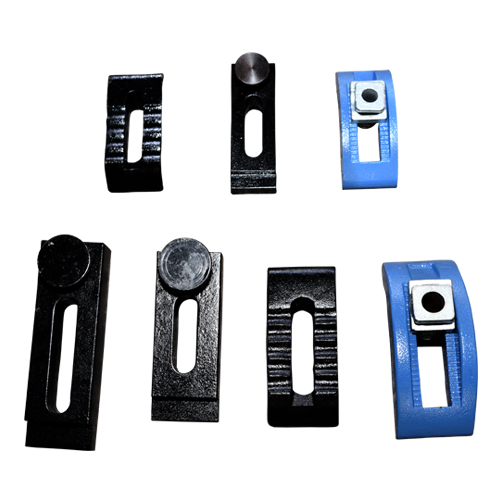

Mould Clamp
Features
- Mould Clamps are an important part of any moulding operation.
- Mould changes can also be completed.
- Faster by using self self adjusting clamps require spare blocks.
- Jacking screw to adjust to different mould plate thickness.
- Speed up your mould changes and eliminate setters.

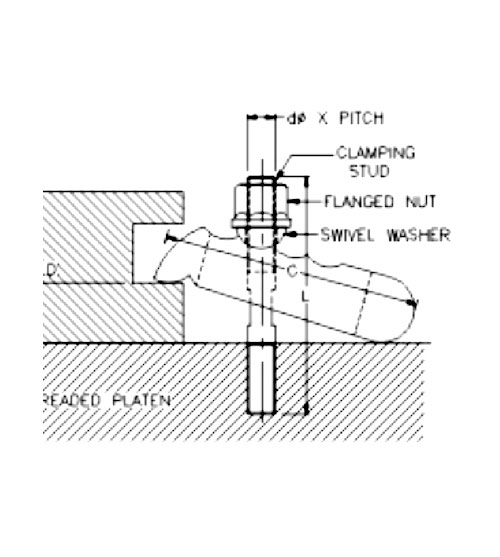

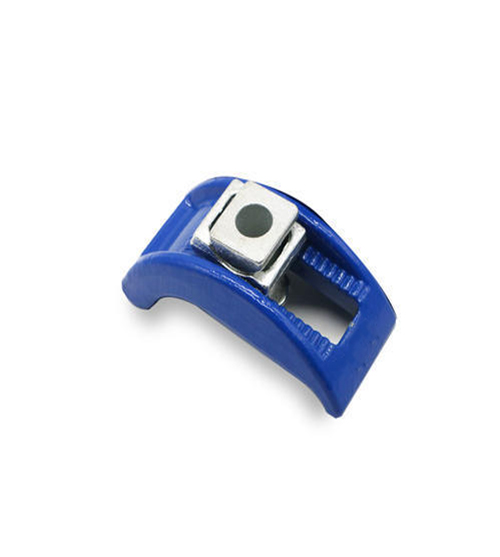

Mould Clamp with Clamping Stud
| Model | dia x Pitch x L | Clamping Range-B | Length of Clamp - C | Breadth of Clamp |
| MC-12 | Stud M-12 x 1.75 x 100 | 0-35 | 110 | 50 |
| MC-16 | Stud M-16 x 2.0 x 125 | 0-40 | 135 | 60 |
| MC-20 | Stud M-20 x 2.5 x 175 | 0-50 | 160 | 70 |
| MC-24 | Stud M-24 x 3.00 x 200 | 0-60 | 180 | 70 |

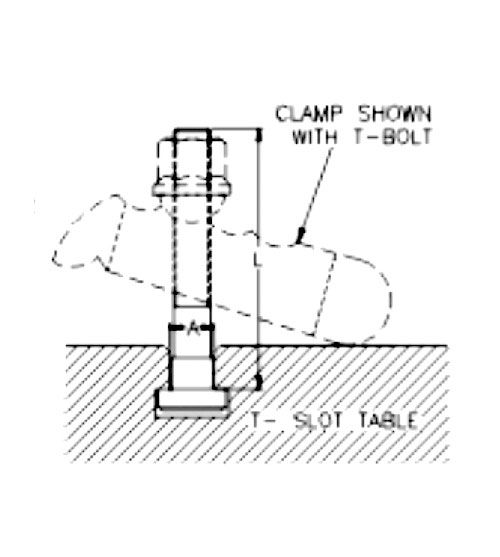

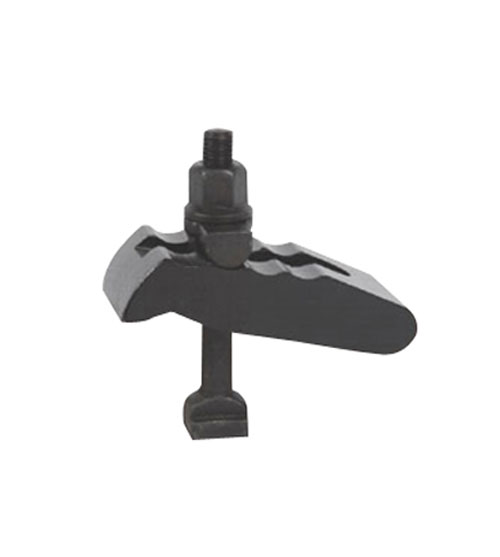

Mould Clamp with T-Bolt
| Model | dia x Pitch x L | Clamping Range-B | Length of Clamp - C | Breadth of Clamp |
| MC-12 | T-Bolt Stud M-12 x 1.75 x 100 | 0-35 | 110 | 50 |
| MC-16 | T-Bolt Stud M-16 x 2.0 x 130 | 0-40 | 135 | 60 |
| MC-20 | T-Bolt Stud M-20 x 2.5 x 150 | 0-50 | 160 | 70 |
| MC-24 | T-Bolt Stud M-24 x 3.00 x 210 | 0-60 | 180 | 80 |
