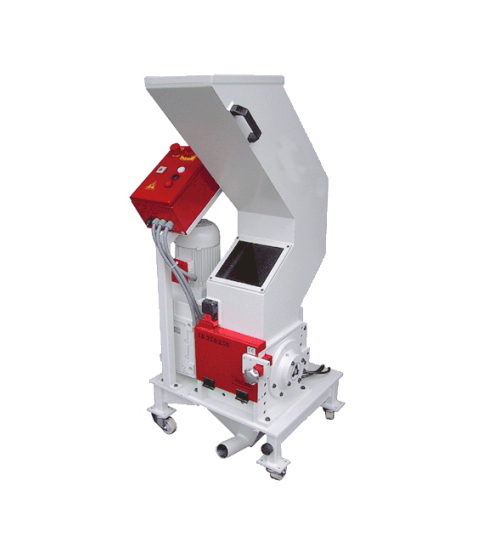

Granulators

Tech. Data:

Working Widths :236X176
Milling rolls diameter :165 mm
Motor output :2,2 kW
Fix Blades :2
Rotating blades :3
Millibg roll speed :240 r.p.m
Grinding output :appr. 30-50 kg/h
Sieve size :5,7 mm

Series PM170 - Motor Output : 2.2 - 4 k W

Medium speed of just 240 rpm, so that gentle granulation of sprues and gating parts takes place, and preventing thermal degradation, ensuring faster output of ground material and regrind with an extremely low level of dust, that is often decisive criterion to ensure that the material can be returned to the production process.

Extremely fast and easy cleaning is enabled by division of the grinder into two sections.

The Benefits:

  • Very compact, Space saving construction
  • Very fast and easy to clean
  • Ideal granulat quality from 4-8 mm
  • High quality milling rolls
  • Wear resistant version for reinforced plastics
  • Basin with connector for suction
  • Almost maintenance-free
  • Easy and fast handling
